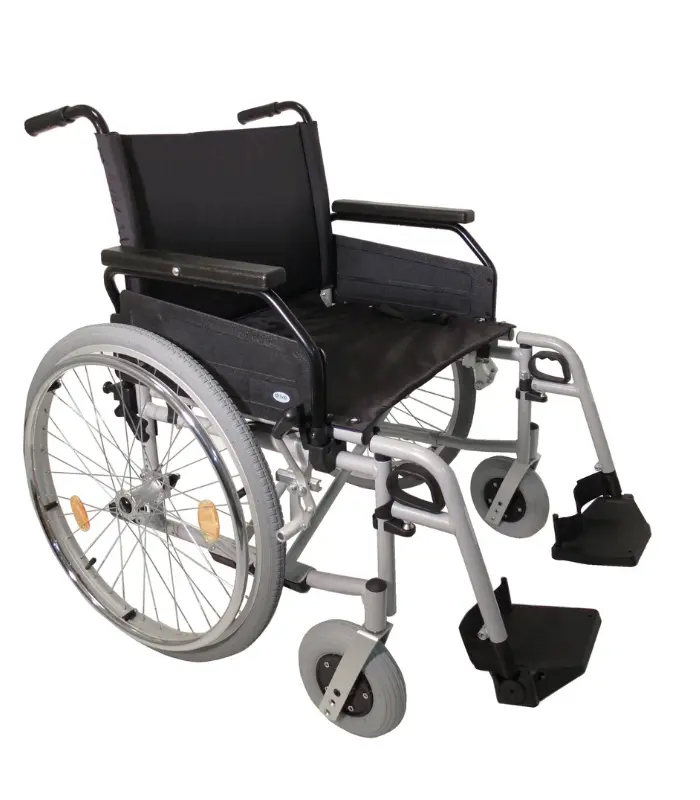

Standard Wheelchairs Rotec XL, 56cm
The XL version of our standard Rotec wheelchair is available in three different seat widths. It also has an optional drum brake for attendants.
Features:
Available in 3 different seat widths
Easy adjustment from short to long armrests
Infinitely adjustable leg length (39-48 cm)
Footplates can be adjusted in five stages
Wheelbase extension possible
Height-adjustable backrest cover for optimum sitting position
Height-adjustable push handle
Three-stage seat height adjustment from 51 to 56 cm possible
Standard quick-release axle for quick wheel assembly or disassembly
Optionally available with drum brake for accompanying person
Total Height: 103.5 cm
Total Length: 107 cm
Total Width: 76 cm
Weight without accessories: 23 kg
Max. Load: 190 kg
Armrest heigh: 23.5 cm
Backrest angle: 6 °
Backrest width: 42.5 - 50 cm
Folded width: 30 cm
Angle of footplate: 32 °
Footrest adjustment: 39 - 48 cm
Front wheel diameter: 8 inch
Rear wheel diameter: 24 inch
Seat angle: 3.45 °
Seat depth: 47 cm
Seat height: 51 - 56 cm
Seat width: 56 cm
Most ORTHOS XXI products are Class I medical devices and bear the CE marking according to Regulation (EU) 2017/745 and they are notified to Infarmed, the Portuguese Health Authority, linked to the European Health Authority. Many of these are, at the time of their launch, tested by accredited and independent entities, namely the IBV (Instituto de Biomecanica de Valencia, in Spain). The company is also certified according to EN ISO 9001.
The quality of our products can be confirmed in the best hospitals, clinics and nursing homes that show their preference towards our products.
